Bin Fluidizer: Complete Guide to Working, Benefits, Applications & Selection
Many bulk materials like cement, fly ash, lime, flour, chemical powders etc. experience problems in flow during their storage and discharge. However, problems such as bridging, ratholing, compaction of material and uneven discharge can cause production to be interrupted, downtime, and material wastage. A Bin Fluidizer is an effective solution that can be created with controlled airflow to aid in the movement of powder and make sure that the powder discharges from a silo, hopper or storage bin smoothly and continuously.
What is a Bin Fluidizer?
A Bin Fluidizer is a pneumatic flow aid which is installed in silos, hoppers and storage bins to enhance the flow of dry bulk materials. It injects low-pressure compressed air into the content by a flexible membrane, so that the material is not segregated during the aeration process. This straightforward and effective solution avoids blockages, ensures uniform flow and minimises manual intervention, and is fundamental to modern bulk material handling systems.
Why Are Bin Fluidizers Required?
Finer powders are found in a large number of industries and tend to become compacted during storage. Common challenges include:
Bridging
Material creates an arch over the outlet, preventing discharge. A Bin Fluidizer is designed to get rid of this formation by enhancing the particle flow.
Ratholing
A very thin channel of flow and material is stuck against the walls of the hopper. The fluidisation promotes full discharge of the material.
Material Compaction
Long storage times result in high packing density, so that discharge is difficult. Air fluidisation will disaggregate a compacted material.
Restricted material flow
Moisture, fine particle size, or a poorly designed hopper can cause the material to flow poorly, resulting in inconsistent feeding and production delays.
How Does a Bin Fluidizer Work?
The working principle is simple
- 1. Fluidizer compressed air is blown in via the air connection.
- 2. The fluidising membrane evenly distributes the air.
- 3.The fine powder particles take the oxygen, and the friction between them decreases.
- 4. Material moves fluidly and evenly from the hopper outlet, not causing bridging or blockage.
This controlled air flow allows for the discharge without harming the material that is stored.
Why Choose Lucky Steels
There are some operational benefits of a Bin Fluidizer that is properly selected:
Avoids bridging and ratholing
Enhances the flow of materials. Enhances consistency of material flow.
Ensures uniform discharge
Reduces equipment downtime
The low-maintenance operation and high energy efficiency.
Minimises material wastage
Improves production efficiency
Saves hopper/ conveyor equipment lift
Common Applications
Bin Fluidizers are commonly used in
Silos
Storage bins
Hoppers
Surge hoppers
Day bins
Pneumatic conveying systems
Systems for bulk powder handling
Dust collection systems
They are widely applied in the cement, power, chemical, food, pharmaceutical, mining, fertiliser, ceramic and steel industries.
Bin Fluidizer vs. Bin Activator
Both systems enhance the flow of materials, though they have different functions. A Bin Fluidizer is compressed air-operated and is suitable for low-maintenance, low-energy fine dry powder.

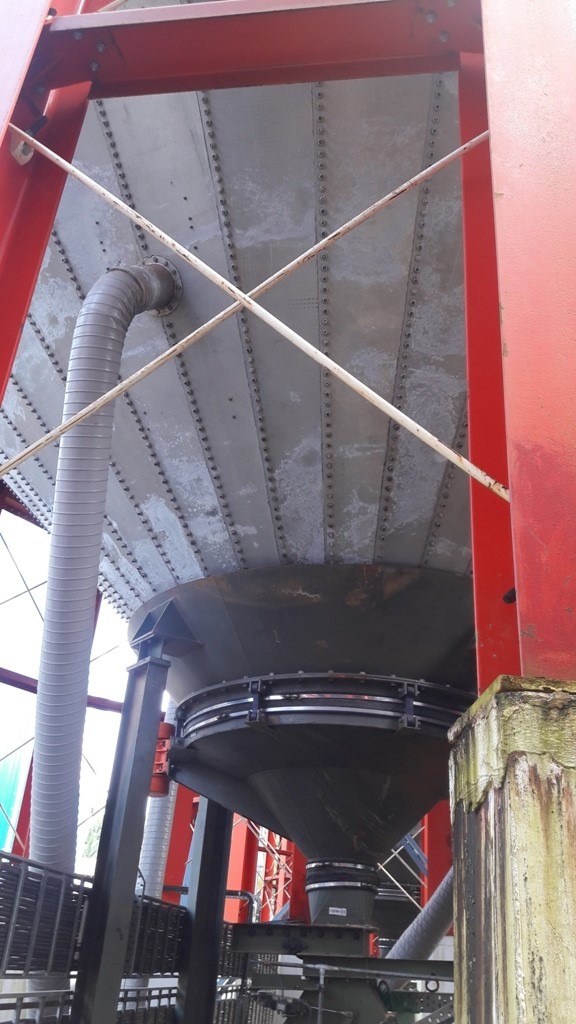

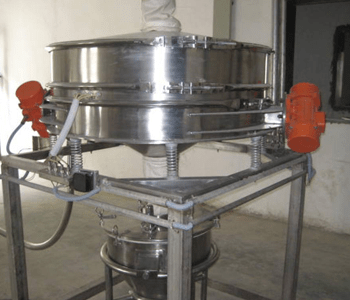

A Bin Activator is a mechanical vibration device that works best with heavier or tougher materials. This selection is determined by the characteristics of the material, the hopper design and the production needs.
How to Select the Right Bin Fluidizer
When choosing a Bin Fluidizer, take into account
Material type
Particle size
Bulk density
Moisture content
Hopper angle and design
Operating pressure
Required flow rate
Installation location
Operating temperature
Working with an experienced bulk material handling equipment manufacturer can help ensure that you get the right configuration for your application.
Why Choose Indpro Engineers?
Indpro Engineers provides bespoke Bin Fluidizers for dependable performance in a wide range of industrial applications. The company provides efficient material flow solutions with advanced manufacturing, quality-focused production, technical consultation, installation support, and responsive after-sales services throughout India with its industry expertise and on-time delivery.
Frequently Asked Questions
It applies low-pressure compressed air to aerate the powder and decrease friction, which increases the flow of the material.
Some of the most common causes are bridging, rat-holing, compaction, moisture and inadequate hopper design.
A Bin Fluidizer prevents material arches and helps to keep material flowing.
Fluidisation evenly distributes airflow and causes complete airflow through the material in the hopper.
